AMOC 100 S - Moisture Control Systems for Foundries
AMOC 100 S has been successfully installed at foundry that uses sand casting process for manufacturing of various products. In foundry industry, the quality of the product relies a lot on the sand mould that is made using dry sand with water and additives/binding agents. AMOC 100S system hence measures critical data that is required to achieve the desired True Target Moisture that needs to be added in form of water to get that perfect sand mould/compatibility AMOC 100 S takes into account the following factors:
Initial Moisture Content of Dry Sand (IMC)
Initial Temperature of Dry Sand (IT)
Measured Throughput Rate (MTR)
Target Moisture (TM)

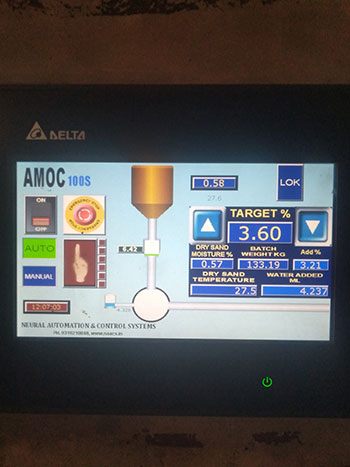

AMOC’s electronic Control Panel continuously calculates the required dampening of water into the sand with the help of these above mentioned factors i.e. IMC ,IT , MTR ,TM. Initial Moisture Content and Temperature of dry sand becomes very critical in determining the target moisture since both of them vary quite frequently depending on the recycling process of sand and different atmospheric temperature during the day. After calculating the required water to be added to the sand to achieve the desired moisture content, AMOC’s water flow controller allows the accurately measured water to be added to the sand. This process can be seen in form of numbers on our digital display located at Electronic Panel.

Benefits:
Highly stable Moisture Content
Accurate Measuring of original moisture present in the product
Accurate Measuring of initial temperature of dry sand
Highly accurate water addition
Low Maintenance
Highly Flexible, Easy to operate

Through AMOC, Neural Automations and Control Systems offer its client a world class Process Automation System with a fully customizable option as per the convenience of its existing and prospective clients. It basically has sub units wherein, sensor , water flow meter and electronic control unit can be accommodated separately as per client need. AMOC equipped with latest, class leading sub-parts offers you the opportunity to have that consistent, exact recipe that you always wanted.
