AMOC 100 G has been created keeping in mind the flour mill industry wherein moisture addition becomes an integral part in the process of making various types of flour from wheat grain.
AMOC is a state-of the art unit that is available today for automatically determining the the grain moisture and achieving accurate water addition to the wheat grain to achieve the desired moisture content in cereals AMOC does its Math on the basis of three factors.
Initial Moisture Content in the wheat grain (IMC)
Measured Throughput Rate (MTR)
Target Moisture (TM)

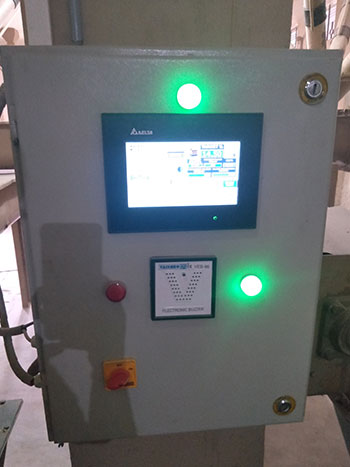

AMOC’s electronic Control Panel continuously calculates the required dampening of water into the grain with the help of these above mentioned factors i.e. IMC , MTR ,TM. After calculating the required water to be added to the wheat to achieve the desired moisture content, AMOC’s water flow controller allows the accurately measured water to be added to the grain. AMOC’s state of art water flow controller is also equipped with auto cut feature wherein the water supply automatically shuts off if there is no grain flow detected. By virtue of Auto Cut, the product enjoys perfect consistency in achieving correct moisture content without overflow of water.
This process can be seen in form of numbers on our digital display located at Electronic Panel.
Benefits:
Highly stable Moisture Content
Accurate Measuring of original moisture present in the product
Highly accurate water dampening
Low Maintenance
Highly Flexible, Easy to operate
AMOC’s Moisture Control- A diagrammatic Interaction

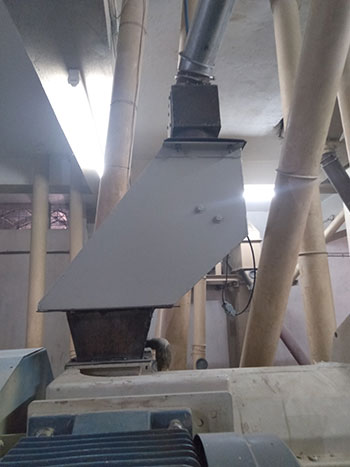

1. Grain flows through AMOC’s Impact flowmeter to measure
Original Moisture Content is measured accurately with the help of Moisture Sensor.
This moisture content is also displayed on the electronic Control System’s digital screen. Our unique Impact flowmeter measures the weight of the product to ascertain the Original Moisture Content thereby giving highly accurate data.

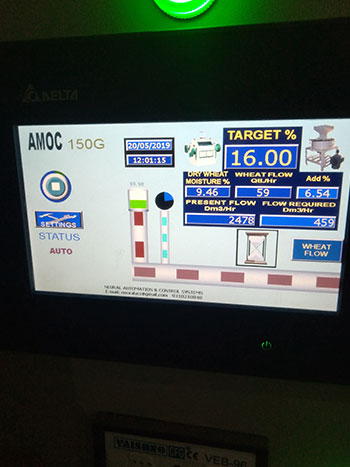

2. On the basis of Original Moisture content, throughput rate of product and desired moisture content, AMOC Electronic Control Unit calculates the amount of water to be added to the product. This is further displayed on HMID located on the Control Unit.
Target Moisture
Moisture Measurement
Flow of wheat
Water Metering
Water flow

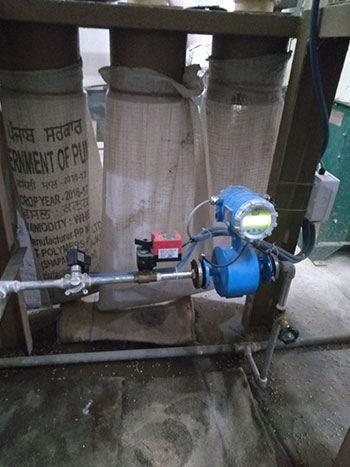

3. After determining the exact percentage of water to be added to the product, our AMOC ECU sync with our Water Flow Controller (WFC) and directs it to meter the flow and initiate the water addition process. Our state of the art WFC is located with technologically advanced water flow meter in order to measure the exact flow of water.It is also equipped with Auto Start/Stop function.
